144-Strand Pre-Loaded OM3 Multimode LC Slide-Out 2U Fiber Patch Panel with Jacketed Pigtail Bundle

Roll over image to zoom in

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

144-Strand Pre-Loaded OM3 Multimode LC Slide-Out 2U Fiber Patch Panel with Jacketed Pigtail Bundle

Name: 144-Strand Pre-Loaded OM3 Multimode LC Slide-Out 2U Fiber Patch Panel with Jacketed Pigtail Bundle
Brand: Fiber Savvy
Price: 954.08 USD
Availability: InStock

Save $50.25

Fiber Savvy

filler

Share this product

Splice trays, adapter panels and pigtails are included

Item is not assembled and items are packaged separately

Description

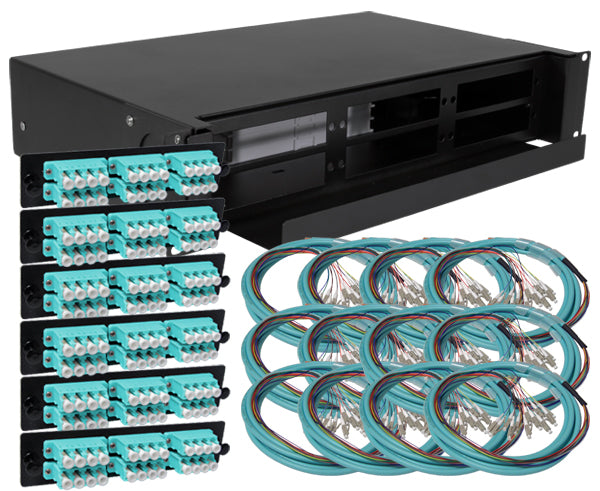

144 Strand Pre-Loaded OM3 Multimode 10G LC 2U Fiber Patch Panel with pigtails and Splice Trays

This rack mount fiber optic patch panel is a 2 Rack Unit (2U/2RU) high density FDU (Fiber Distribution Unit) that Includes OM3 Multimode 10G 12 Fiber Pigtails, LGX SC adapter panels and splice trays (24 fiber). The fiber housing has a slide out master panel with an integrated tray stop to prevent over extension of fiber cables. The FB36-6260R6 is one of a family of units that support fiber terminations in rack mount applications.

For additional fiber adapter panels use our LGX FB24 adapter panel inserts. To find out more, give us a call (951) 801-5780 or email us (sales@fibersavvy.com).

Features

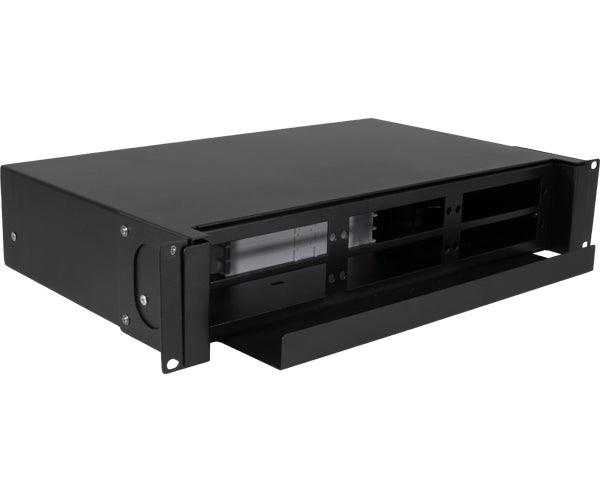

2U Slide-Out Fiber FDU Patch Panel Housing

Fits up to 144 fiber splices
Fits 6 LGX fiber optic adapter panels
Includes six 24 fiber splice trays
Durable powder coat finish
Made from SPCC steel
Smooth gliding pull out system

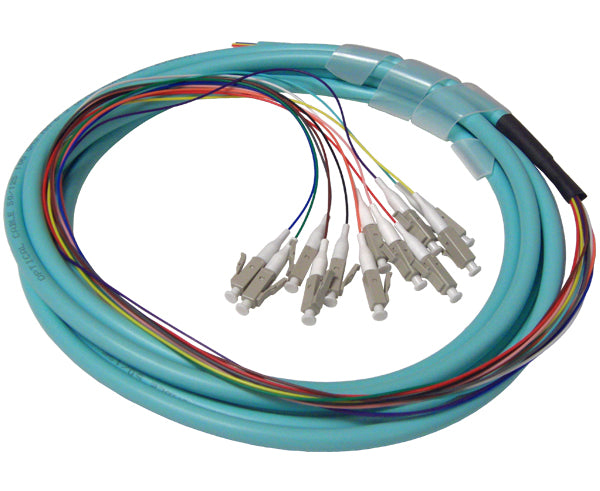

Multimode OM3 10G Fiber Optic Pigtail, LC, 12 Strand Jacketed, 3 Meter

Protective outer jacket, which can easily be removed for tighter spaces.
Pre-terminated fiber to reduce installation time and ensure accuracy.
12 OM3 Multimode 10G LC connectors ready to plug directly into an adapter panel.

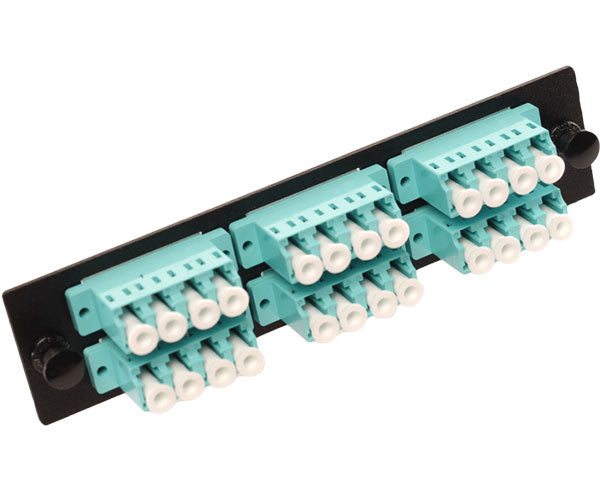

Fiber Adapter Plates

Steel LGX type adapter plates with black paint
LC duplex fiber adapters/couplers
Metal clips secure the adapters/couplers in the adapter plates

SpecificationsWhat's Included

Recover password

Payment & Security

144-Strand Pre-Loaded OM3 Multimode LC Slide-Out 2U Fiber Patch Panel with Jacketed Pigtail Bundle

Splice trays, adapter panels and pigtails are included

Item is not assembled and items are packaged separately

144 Strand Pre-Loaded OM3 Multimode 10G LC 2U Fiber Patch Panel with pigtails and Splice Trays

2U Slide-Out Fiber FDU Patch Panel Housing

Multimode OM3 10G Fiber Optic Pigtail, LC, 12 Strand Jacketed, 3 Meter

Fiber Adapter Plates

Physical Properties

144 Fiber, LC OM3 Multimode 10G 2U Fiber Patch Panel Contents
