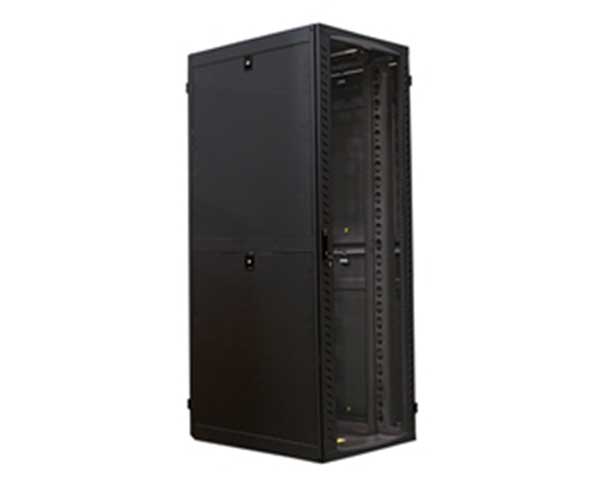

32" Black Network Cabinet, 52U Standard Configuration (Flat Packed), 31.5"W x 42"D

Roll over image to zoom in

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

32" Black Network Cabinet, 52U Standard Configuration (Flat Packed), 31.5"W x 42"D

Name: 32" Black Network Cabinet, 52U Standard Configuration (Flat Packed), 31.5"W x 42"D
Brand: Fiber Savvy
SKU: NPNB-VC5-8A52-ABV1F
Price: 1,820.00 USD
Availability: OutOfStock

NPNB-VC5-8A52-ABV1F

Fiber Savvy

filler

Share this product

Various lead times may apply to this product. Please contact us for more details.

Description

32" Black Network Cabinet, 52U Standard Configuration (Flat Packed), 31.5"W x 42"D

Primus Cable 32" Network Cabinets are designed and built to U.S. industry standards and provide a customizable solution for data center build-outs, network rooms, or IT closets. The feature-rich, robust design can be shipped as a custom-configured solution that is fully assembled with Primus Cable accessories pre-installed.

Available as an open frame or complete enclosure in multiple size combinations or colors and door options, Primus Cable cabinets offer a variety of options and features to meet your specific needs.

Features

Pre-installed recessed casters combine convenient mobility with minimal added height to provide additional stability
Brush cable entry slots at front and back of top panel and sliding panels on bottom
52U, 31.5”W x 42”D
3,000 lb. static load capacity
Ships fully assembled and can be configured with accessories to match your individual specifications
UL Listed 2416 NWIN

Security & Protection

Locking Doors and side panels prevent unauthorized access to equipment
Two pairs of adjustable 19" EIA rails provide a stable mounting structure

Flexibility

Vertical cable management channel on each side features T-shaped fingers and various size holes/slots for organizing cables
Rails and cable channels can be easily repositioned in labeled, 1 cm increments to accommodate various equipment depths
Removable and lockable half height side panels
Doors hinge on either side and swing open 180° to provide superior access for installation and maintenance of equipment
Vertical lacing channel with PDU mounts pre-installed on rear corners for easy cable management

Multi-Use

Available in multiple size combinations to fit in a variety of environments
Adaptable for use in data center build outs, computer rooms or data closets

Specifications

Width	31.50 in.
Depth	42.0 in. (with doors), 40.04 in. (frame only)
Height	96.17 in. (frame only), 98.47 in. (with Casters)
Dimensions	31.5"W x 42"D
Max Load Capacity	3,000 lbs. (1,360 kgs)
Rack Unit Quantity	45U
Frame Material(s)	Heavy Gauge Cold Rolled Steel
Color/Finish	Black Powder Coat
Standard Configuration Front Door	Removable, Reversible & Lockable Tempered Glass, Opens Full 180°, 2 Point Latch, Quick Release Hinges
Standard Configuration Rear Door	Removable, & Lockable Split Mesh, Opens Full 180°, 2 Point Latch, Quick Release Hinges
Side Panels	(2 Per Side) Half Height, Removable & Lockable
Top Panel	10.5” x 13.5” Removable Vented Panel For Optional Fans, (4) 3.5” x 18” Brush Cable Managers
Bottom Panel	(2) 4” x 15” Sliding / Removable Panels, (2) 10” x 15” Sliding / Removable Panels, (2) 3.5” x 18” Brush Cable Managers
Equipment Support	Two Pairs Of 14 Gauge Mounting Rails, 1.75” RU Spacing, Marked & Numbered On Rails; 19” W, EIA-310-D Universal Vertical Hole Spacing
Grounding	14 AWG Ground Wire Connects Doors & Side Panels To Cabinet Frame
Included Accessories	(4) Adjustable Leveling Feet, (4) Casters, (8) Grounding Kits, (2) Lacing Channels, (50) Sets of M6 Screws & Cage Nuts, (2) Keys
Compliance & Standards	UL Listed 2416, NWIN, ANSI/EIA RS-310D, IEC60297-2, DIN41194; Part 1, DIN41494; Part 7

What’s In The Box
