Description

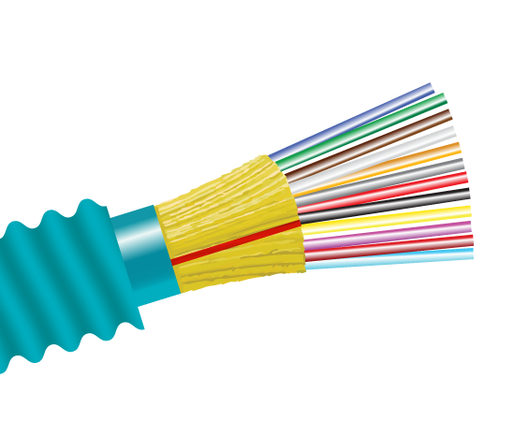

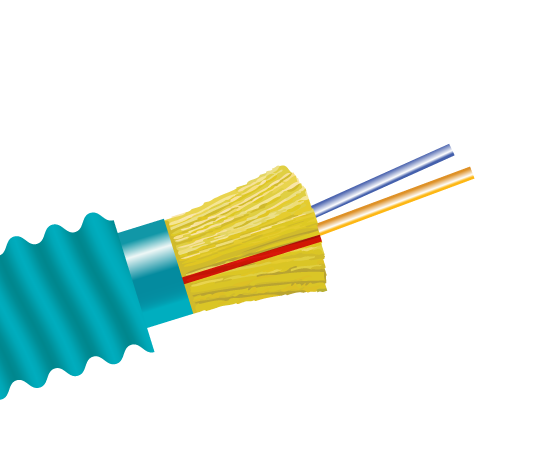

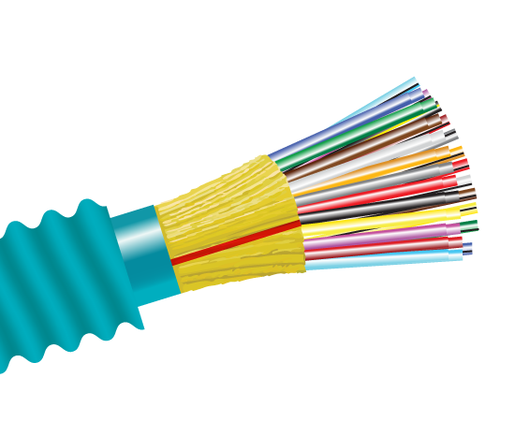

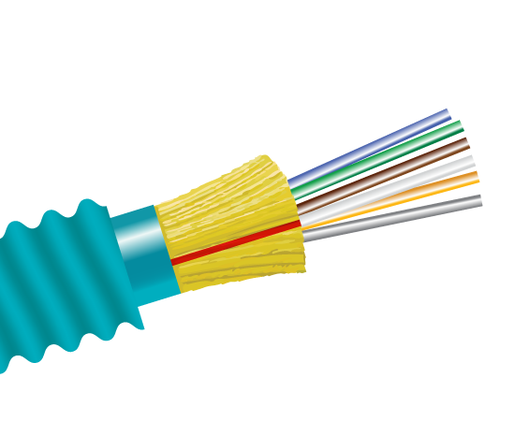

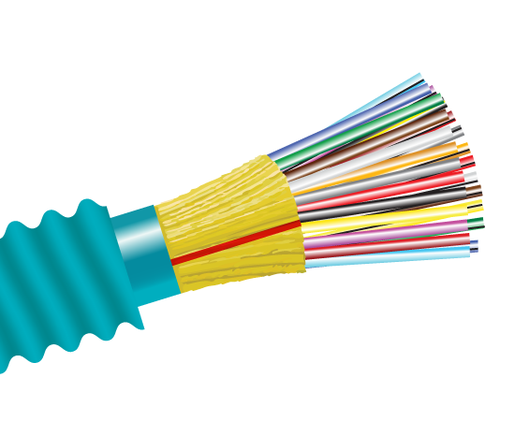

MultiMode 50/125 OM4 Armored Riser Fiber Cable with Aluminum Interlocking Armored Design
The armored riser fiber cable offers optimal suitability for industrial and similar setups necessitating metallic armor, providing superior flexibility compared to standard corrugated steel-armored (CST) cables. Its interlocking preloaded armor potentially obviates the necessity for conduit, thereby cutting down on installation expenses. Moreover, the interlocking armor can be effortlessly detached, leaving behind an intact inner plenum-rated cable for seamless installation in plenums and air-handling spaces.
Applications- Ideal for industrial and other installations requiring a metallic conduit
- Interlocking pre-loaded armor may eliminate the need for conduit, reducing installation costs
Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.
Features
Features
- Cable materials are Indoor/Outdoor – UL-listed OFCR and UV, water and fungus resistant
- UL Listed in accordance with NEC section 770.179(b) for use in vertical runs in building risers or from floor to floor
- Aluminum interlocking armor with PVC overjacket
- Interlocking armor can be easily removed leaving an intact inner cable
- Greater flexibility than standard corrugated steel armored (CST) cables
- Ideal for locations that require conduit for cable protection
- Wide operating temperature of -40°C to +85°C
Optical Cable Corporation's Indoor/Outdoor tight-buffered fiber optic cables meet the functional requirements of the following standards:
- UL 1666
- UL 1651
- ICEA-S-83-596
Specifications
Specifications
- Operating Temp: -40°C to +85°C
- Storage Temp: -55°C to +85°C
- Install Temp: 0°C to +60°C
- Flame Retardancy: UL Listed Type OFCR (UL 1666)
- Crush Resist: 650 N/cm
- Impact Resist: 20 impacts
- Flex Resist: 25 cycles
- Jacket Type: D Inner, A Outer
