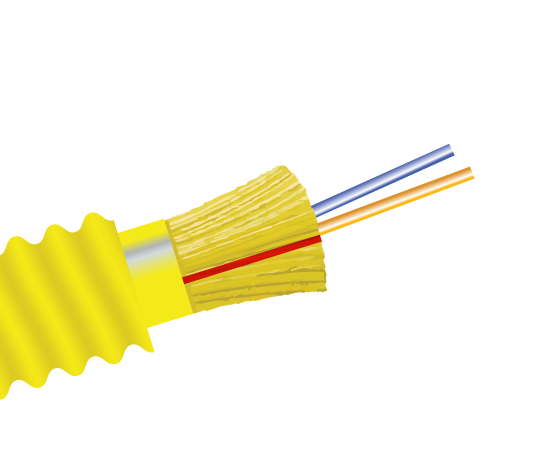

Fiber Optic Cable, 2 Strand, Single Mode, 9/125, Armored Indoor/Outdoor Distribution, Riser

Roll over image to zoom in

Armored Riser Fiber Optic Cable, Single Mode, Indoor/Outdoor Distribution

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Armored Riser Fiber Optic Cable, Single Mode, Indoor/Outdoor Distribution

Name: Armored Riser Fiber Optic Cable, Single Mode, Indoor/Outdoor Distribution
Brand: OCC
SKU: DX002DSLX9YRI2
Availability: InStock

DX002DSLX9YRI2

OCC

Strand Count: 2 Strand

Variant

Price:

Call For Pricing

Quantity:

If you’re looking to purchase more than one spool then each spool needs to be entered into the cart as a separate line item. Input the length and then select Add to Cart for every individual spool needed.
This product has a minimum $50 associated cut fee applied to the shipping cost

Share this product

Various lead times may apply to this product. Please contact us for more details.

(We do not offer credits or returns for this item.)

For volume quotes or to inquire about our custom fiber cable options such as terminated ends, pulleyes, and custom cut lengths, please call or email us.

Please call for shipping quote

Description

Single Mode, 9/125, Aluminum Interlocking Armored Distribution Cable, OFCR Riser Rated, Indoor/Outdoor, Price Per Foot

This armored riser fiber cable is ideal for industrial and other installations requiring a metallic armor and has a greater flexibility than standard corrugated steel-armored (CST) cables. The interlocking preloaded armor may eliminate the need for conduit, reducing installation costs. The interlocking armor can be easily removed leaving an intact inner riser rated cable for installation into building risers or from floor to floor.

Applications

Ideal for industrial and other installations requiring a metallic armor
Interlocking preloaded armor may eliminate the need for conduit, reducing installation costs

Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.

Features

UL Listed in accordance with NEC section 770.179(b) for use in vertical runs in building risers or from floor to floor
Aluminum interlocking armor with PVC overjacket
Interlocking armor can be easily removed leaving an intact inner cable
Greater flexibility than standard corrugated steel armored (CST) cables
Ideal for locations that require conduit for cable protection
Wide operating temperature of -40™C to +85™C

Specifications

Laser Ultra-Fox™ Fiber Performance

Fiber Code	SLX
Industry Standard Designation	Low Water Peak Single-Mode ITU-T G.652.D
Core/Cladding Diameter (μm)	9/125
Wavelength (nm)	1310/1550
Maximum Cabled Attenuation (dB/km)	0.5/0.5
Primary Coating Diameter (μm)	245
Secondary Buffer Diameter (μm)	900
Zero Dispersion Slope (ps/nm2-km)	0.092
Proof Test Level (kpsi)	100

Installation and Operating Characteristics

Inner Cable

	Installation	Operating
Max Tensile Load	3,000 N (670 lbs)	1,000 N (220 lbs)
Min Bend Radius	13.4 cm (5.3 in)	8.9 cm (3.5 in)

Outer Cable

	Installation	Operating
Max Tensile Load	1,350 N (300 lbs)	400 N (90 lbs)
Min Bend Radius	33.4 cm (13.1 in)	25.1 cm (9.9 in)

Mechanical and Environmental

	Inner Cable	Entire Cable
Impact Resistance EIA/TIA-455-25A	1,500 Impacts	20 Impacts
Flex Resistance	2,000 N/cm	25 N/cm
Crush Resistance TIA/EIA-455-41A	1,800 N/cm	650 N/cm
Operating Temperature	-40°C to +85°C	40°C to +85°C
Storage Temperature	-55°C to +85°C	-55°C to +85°C
Installation Temperature (actual temp. of cable)	-10°C to +60°C	0°C to +60°C
Flame Retardancy	UL Listed Type OFNR (UL 1666) and FT4 (CSA C22.2 No. 232)	UL Listed Type OFCR (UL 1666) and FT4 (CSA C22.2 No. 232)

Cable Characteristics

Inner Cable

Jacket Color	Black
Jacket Material	Indoor / Outdoor PVC
Buffer Material	PVC
Cable Weight	67 kg/km (45 lbs/1000')
Cable Diameter	8.9 mm ( 0.35 in)

Outer Cable

Jacket Color	Yellow
Jacket Material	Indoor / Outdoor PVC
Cable Weight	239 kg/km (161 lbs/1000')
Cable Diameter	16.7 mm ( 0.66 in)

Single Mode Fiber Information

Single mode fiber cable (Synonyms mono-mode optical fiber, single-mode fiber, single-mode optical waveguide, uni-mode fiber) is a single strand of glass fiber with a diameter of 8.3 to 10 microns that has one mode of transmission. Single mode fiber has a relatively narrow diameter, through which only one mode will propagate typically 1310 or 1550nm wavelengths. Single mode fibers carry higher bandwidth than multimode fiber, but require a light source with a narrow spectral width. Single-mode fiber gives you a higher transmission rate and up to 50 times more distance than multimode. The small core and single light-wave virtually eliminate any distortion that could result from overlapping light pulses, providing the least signal attenuation and the highest transmission speeds of any fiber cable type.
