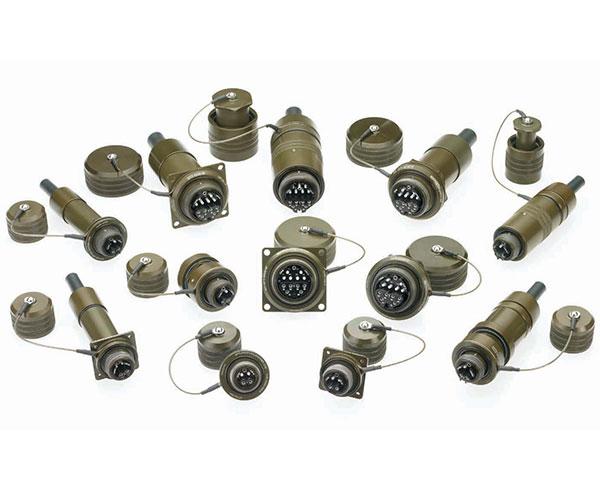

MIL-SPEC Connector, COTS-83526

• The M83526 is interoperable, inter-mateable in accordance with the reitred MIL-PRF-83526/16, /17 interface specification which makes it backward compatible with most fielded M83526 4 CH and 12 CH connectors and essentially using the same assembly procedures and tools.
• Field Convertible Hermaphroditic Plug allows Plug-to-Plug assembly on a reel to be instantly provisioned for male (daisy chain) or female connectivity.
• The Field Convertable Hermaphroditic Dust Plug Cap is instantly provisioned with mating dust cap to allow dust cap coupling.
• Ceramic Split Sleeves are retained within the Insert Cap, preventing sleeves becoming misplaced during maintenance routines.
• Enhanced Kevlar Retention System supports 400 lb. cable retention without degradation of optical signal.
• Sealed Termini Design for 4 CH, 6 CH, 12 CH, and 24 CH Systems utilize Sealing, Environmental Resistance to meet IP-68 requirements.
• COTS-83526 Integrated "Push-Pull" system allowes operators to easily terminate COTS-83526 Plugs and Receptacles in an efficient, non-complex format.
• Dry Film Thread Lubrication extends life of mating threads, self-lubricating through repeated mating cycles.

• Mobile Emergency Telecommunications Stations
• Mobile Tactical Shelters
• United States Army, Navy, and Marine Corps military tactical deployments
• Deployable Trailers for Federal Emergency Management Agency
• Homeland Security

PERFORMANCE SPECIFICATION PARAMETER

Insertion Loss (multimode): 0.50dB - Typical, 0.75dB - Maximum

Insertion Loss (single-mode): 0.40dB - Typical, 0.75dB - Maximum

Back Reflection (single-mode, UPC polish): -50dB - Typical, -40dB - Maximum

Operating Temperature: -54°C to + 71°C

Storage Temperature: -57°C to + 85°C

Mating Durability: 2000 cycles

Impact: Method B, Omit wall pipe

Twist: ±90° rotation, one cycle/ 5sec., 1000 cycles

Cable Sealing Flex: Procedure I

Cable Retention: 400 lbs min.

Crush Resistance: 450 lbs

Temperature Life: 250 Hr, 85 ± 2°C

Thermal Shock: Condition B-0 except 10 cycles, @ 85° C and -62° C

Physical Shock: Condition C, 5 shocks/axis

Vibration: Condition III & VI Condition C for 1.5 hr, Except III

Humidity: Type II

Salt Spray¹: Condition C

Fluid Immersion: All fluids subject to 24 hours

Water Submersion: Method A, Procedure 1, 1m for 24 hours. Bulkhead mounted in watertight cube

Flammability: EIA-364-8

Mud Test²: 5 min. immersion, 10 cycles

Electromagnetic Effects^1,3: 20kHz, 150kHz, 14MHz, 400MHz, 600MHz, 1GHz, 2GHz, 8GHz, 10GHz, VERT. & HORZ., <-60dB

¹ Applies to ZiNi plating only
² Sand/Topsoil substituted for Potter's Clay
³ 12 CH Receptacle requires application of SRR configurations
