Description
Multi-Function OTDR

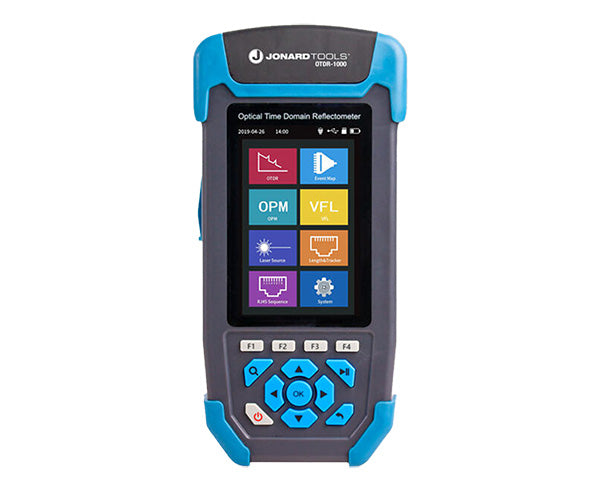

Jonard Tools’ Mini Pro OTDR is the perfect all-in-one handheld device for evaluating FTTx and access network construction and maintenance, identifying fiber breakpoints, measuring cable length, and calculating relative optical power losses.
Features
Features
- Includes 8 different functions for testing and evaluating fiber optic and network cables

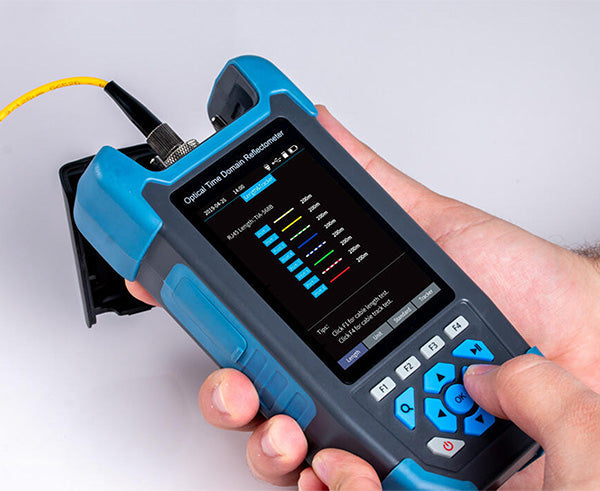

- Bright 3.5” color LCD screen makes it quick and easy to evaluate data

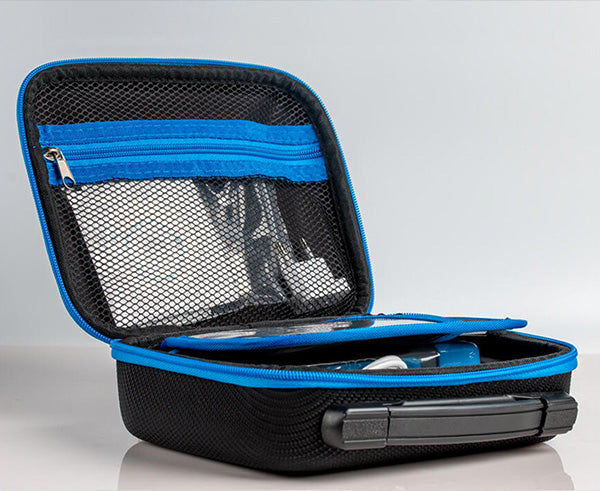

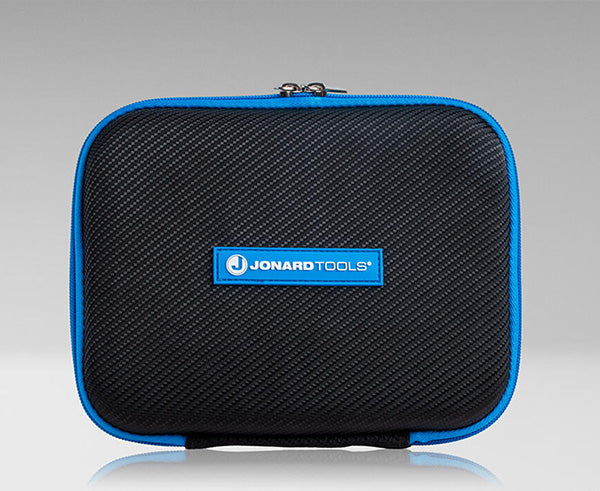

- Rubberized hard plastic case is shock-proof and drop-proof for maximum durability

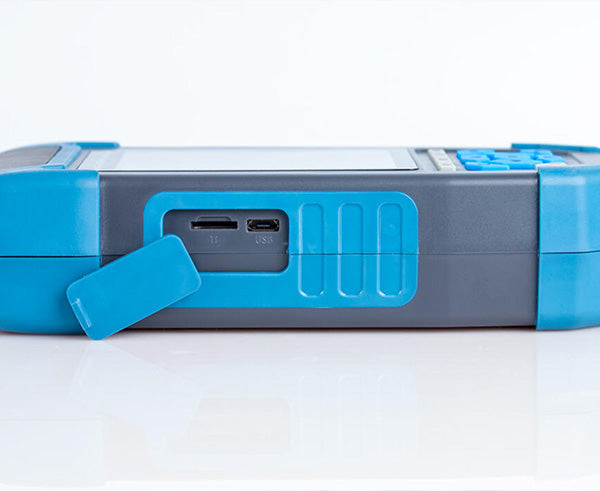

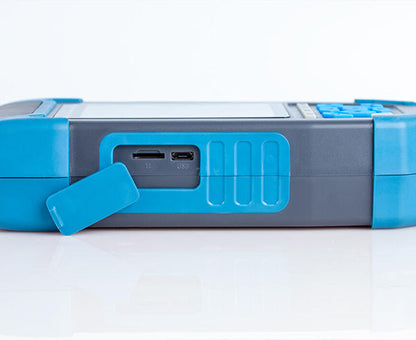

- 600 MB Internal storage with MicroSD/TF card slot for additional memory
- Built-in rechargeable lithium ion battery provides power on-the-go
- Can be charged or connected to a computer for data transfer via included micro-USB cable

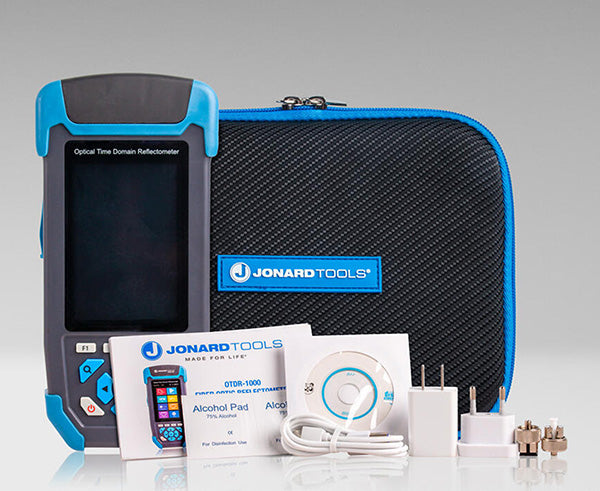

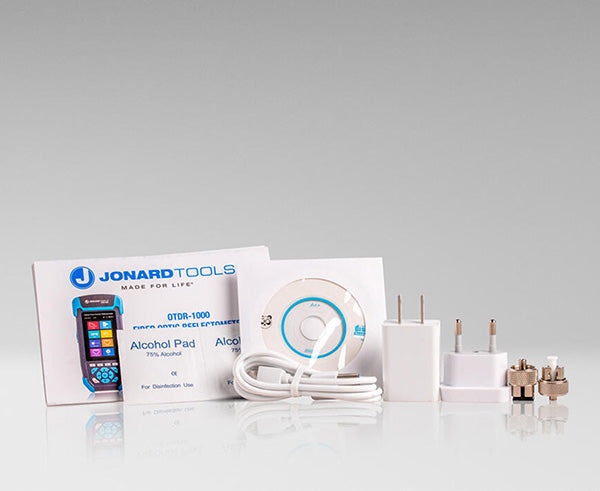

- Includes FC, SC, and LC (PC/UPC) OTDR adapters for fiber optic cables, downloadable software (also featured in the download section of this product page), power cord with plug adapters, alcohol wipes, and instruction manual
| OTDR-1000 - FUNCTIONS | |
|---|---|
|
|
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| TOOL SPECIFICATIONS | |
| WAVELENGTH | 1310 NM / 1550 NM ± 20 NM |
| FIBER TYPE | G.652 SM FIBER |
| DYNAMIC RANGE | 24 DB / 22 DB |
| EVENT BLIND ZONE | 3 M |
| ATT BLIND ZONE | 8 M |
| TEST RANGE | 500 M ~ 60 KM |
| PULSE WIDTH | 3 NS ~ 10 US |
| RANGING ACCURACY | ±(1 M + SAMPLING INTERVAL + 0.005% × TEST DISTANCE) |
| LOSS ACCURACY | ±0.2 DB/DB |
| SAMPLING POINTS | 16K ~ 128K |
| SAMPLING RESOLUTION | 0.05 M ~ 8 M |
| REFLECTION ACCURACY | ±3 DB |
| LASER SAFETY LEVEL | CLASS II LEVEL |

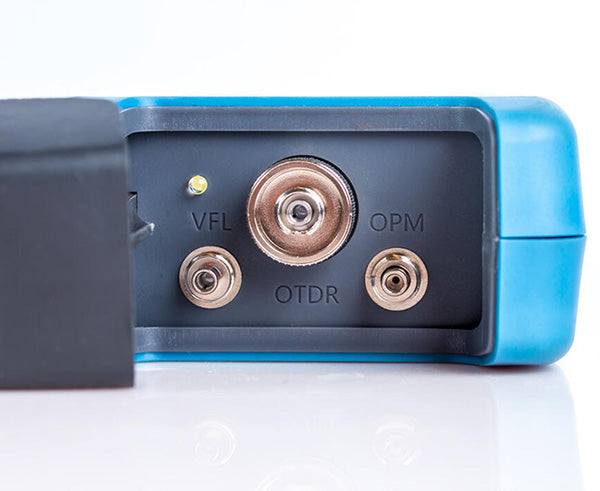

| CONNECTOR | FC/UPC (INTERCHANGEABLE SC/ST) |
| PHYSICAL CHARACTERISTICS | |
| DATA STORAGE | INTERNAL: ≥600; EXTERNAL: TF CARD |
| FILE FORMAT | SOR STANDARD FILE FORMAT |
| IDENTIFICATION | |
| MODEL NUMBER | OTDR-1000 |
Additional Information
| MULTI-FUNCTION OTDR (OTDR-1000) |
|---|
What's In The Box
What's In The Box
- Qty 1 - Multi-Function OTDR
